Centaflex DS size 22 SAE 6.5 (021-61470-000)

Centaflex DS size 22 SAE 6.5 Complete coupling CF-DS-22

External Diameter: 215.5
SAE: 6.5
PCD: 199
Hub (Z): 26
Hub d: 31.8
Hub D2: 34.8
Holes: Ø9×6

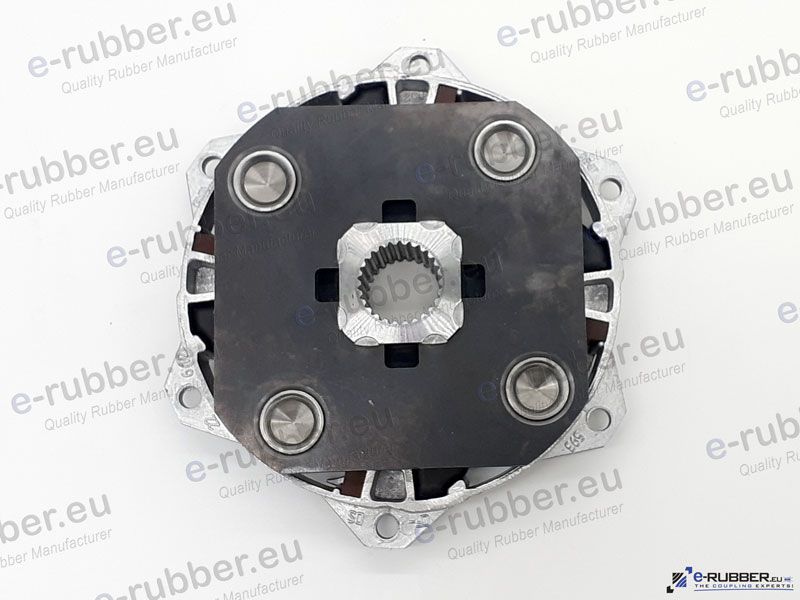

Centa marine damper plate (drive plate, Centaflex dual stage coupling) for marine use.

CENTA: 021-61470-000 | 02161470000 | 021D-00022-0006-069118 | 1-61470-00 | 021D-00022-0006
Twin Disc: IT4648004

Used on:
Twin Disc / Technodrive: TMC 260 / TM 345
Volvo: TAMD22 / D2-55 / D2-75

This Centa marine damper plate, also known as a drive plate or Centaflex dual-stage coupling is specifically developed for marine use. Its dual-stage elastic design effectively absorbs torsional vibrations and shock loads, protecting gearboxes and drivetrains while enhancing operational comfort and efficiency.
