Centaflex DS size 22 SAE 6.5 (021-61583-000) Z26

Centaflex DS size 22 Complete coupling SAE 6.5 (021-61583-000) Z26

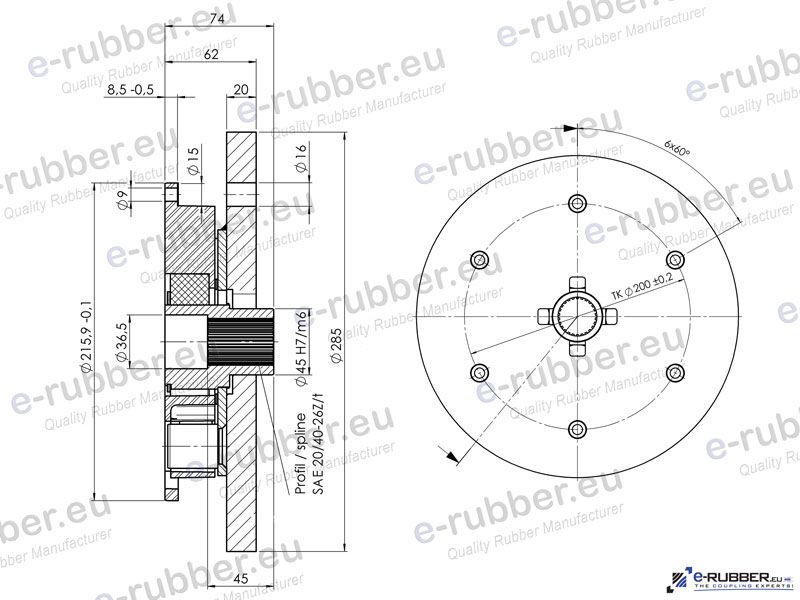

External Diameter: 285 x 215.8
SAE: 6.5
PCD: 200
Hub (Z): 26
Hub d: 31.8
Hub D2: 34.8
Holes: Ø9×6

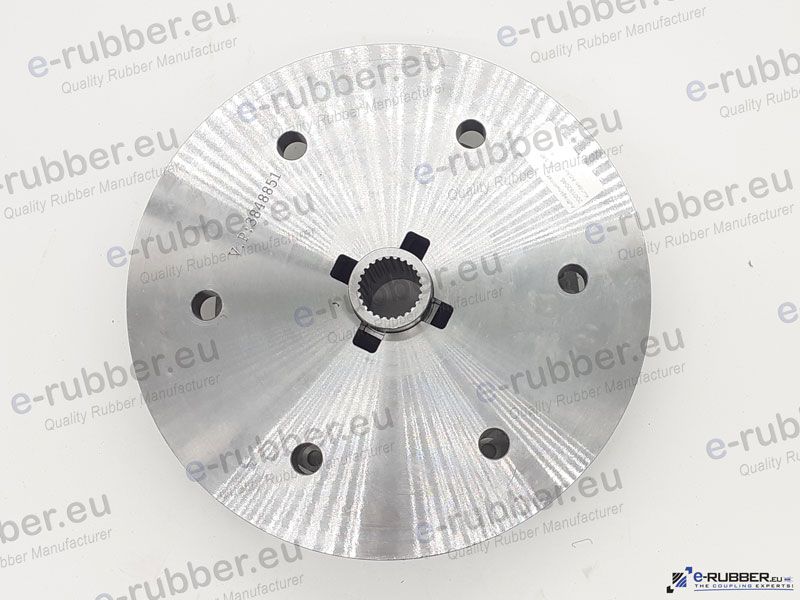

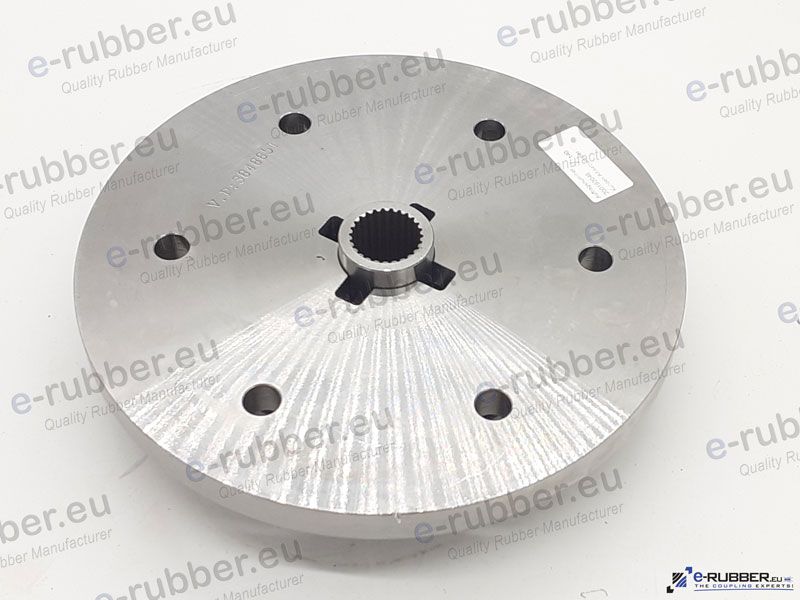

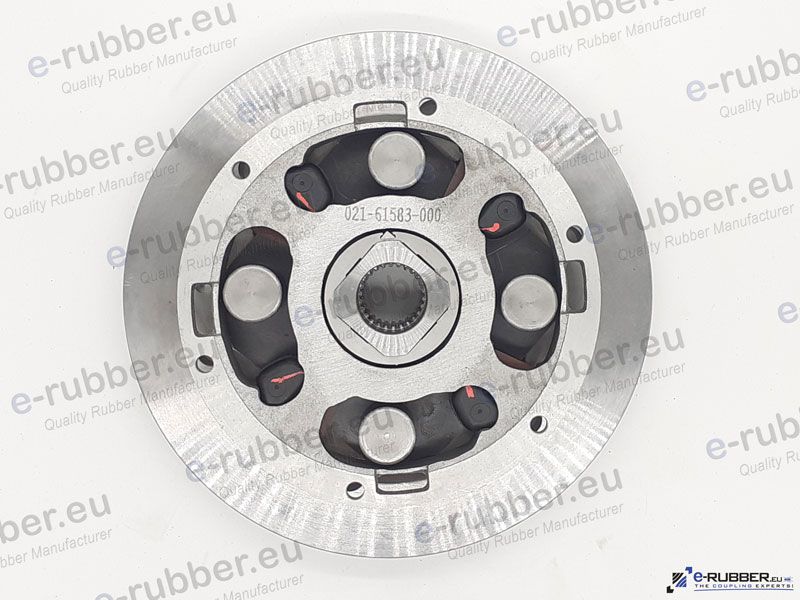

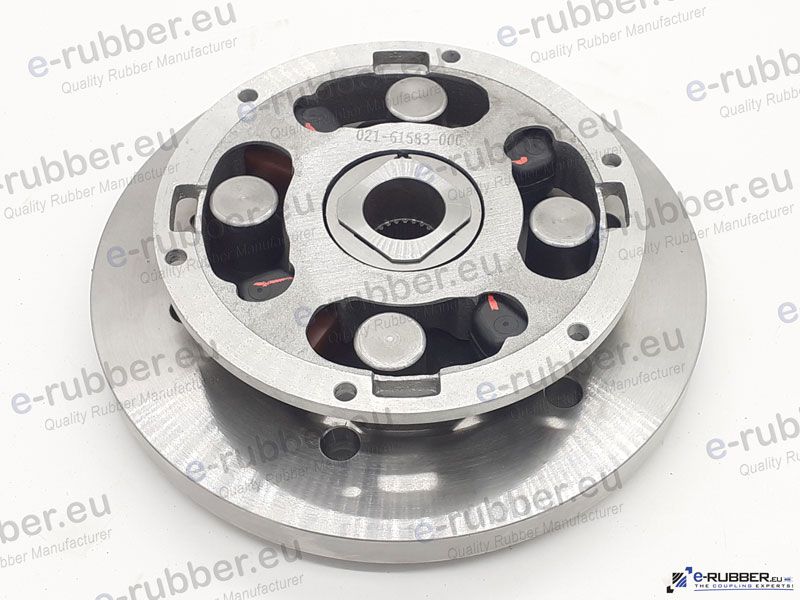

Centa marine damper plate (drive plate, Centaflex dual stage coupling) for marine use.

CENTA: 021-61583-000 | 021-61583-001-000 | 021-61583-00
VOLVO: 3819449

This Centa marine damper plate, also known as a drive plate or Centaflex dual-stage coupling is specifically developed for marine use. Its dual-stage elastic design effectively absorbs torsional vibrations and shock loads, protecting gearboxes and drivetrains while enhancing operational comfort and efficiency.
