Centaflex DS size 22 SAE 6.5 (021-61638-000)

Centaflex DS size 22 SAE 6.5 Complete coupling CF-DS-22

External Diameter: 215.5
SAE: 6.5
PCD: 200
Hub (Z): 26
Hub d: 31.8
Hub D2: 34.8
Holes: Ø8×6

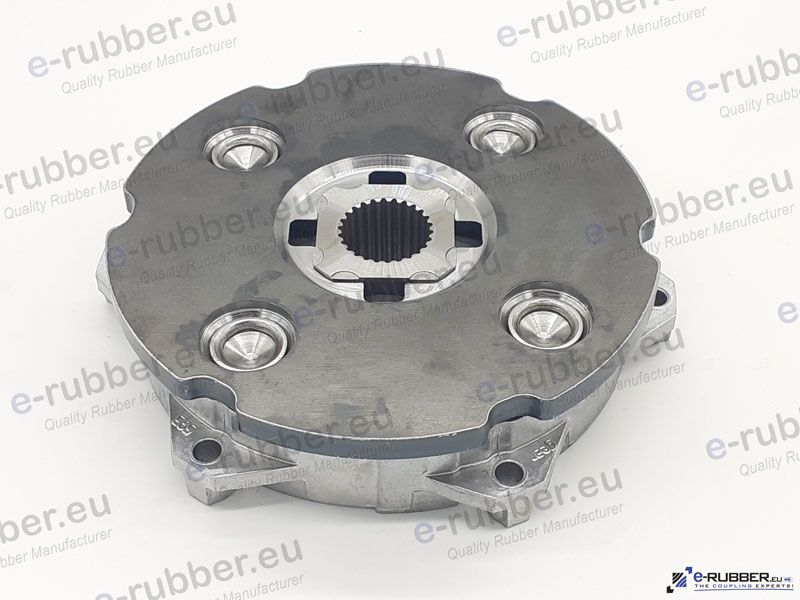

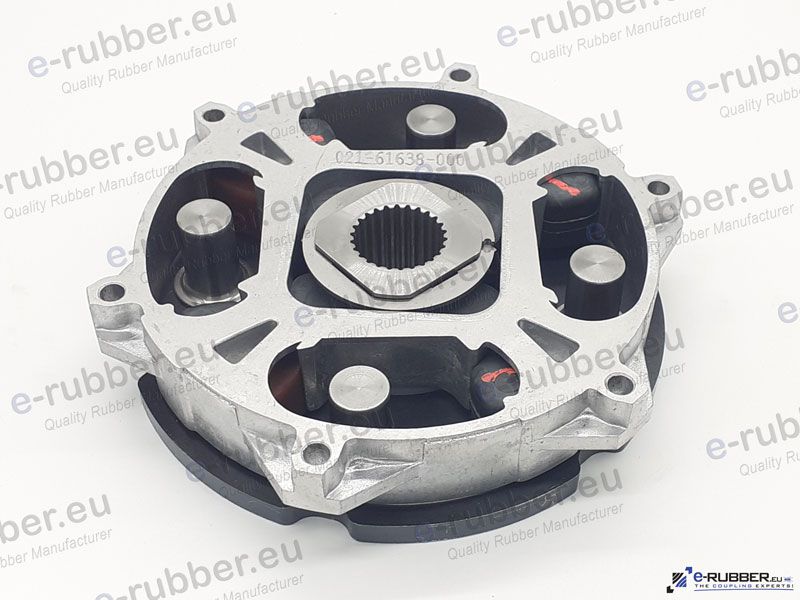

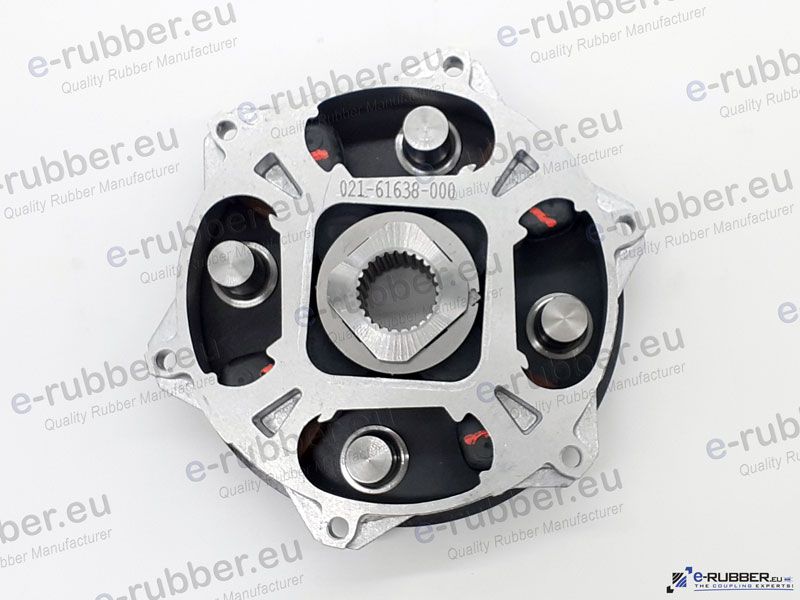

Centa marine damper plate (drive plate, Centaflex dual stage coupling) for marine use.

CENTA: 021-61638-000 | 021 61638000
YANMAR: 120652-21603

Used on:
Yanmar: 4BY2-150, 4BY2-150Z, 4BY2-180, 4BY2-180Z, 4BY3-150, 4BY3-150Z, 4BY3-180, 4BY3-180Z, 6BY2-220, 6BY2-220Z, 6BY2-260, 6BY2-260Z, 6BY3-220, 6BY3-220Z, 6BY3-260, 6BY3-260Z

This Centa marine damper plate, also known as a drive plate or Centaflex dual-stage coupling is specifically developed for marine use. Its dual-stage elastic design effectively absorbs torsional vibrations and shock loads, protecting gearboxes and drivetrains while enhancing operational comfort and efficiency.
