Centaflex DS size 25 SAE 11.5 (021-65501-000)

Centaflex DS size 25 SAE 11.5

External Diameter: 352.3
SAE: 11.5
PCD: 334
Hub (Z): 26
Hub d: 31.8
Hub D2: 34.8
Holes: Ø11×8

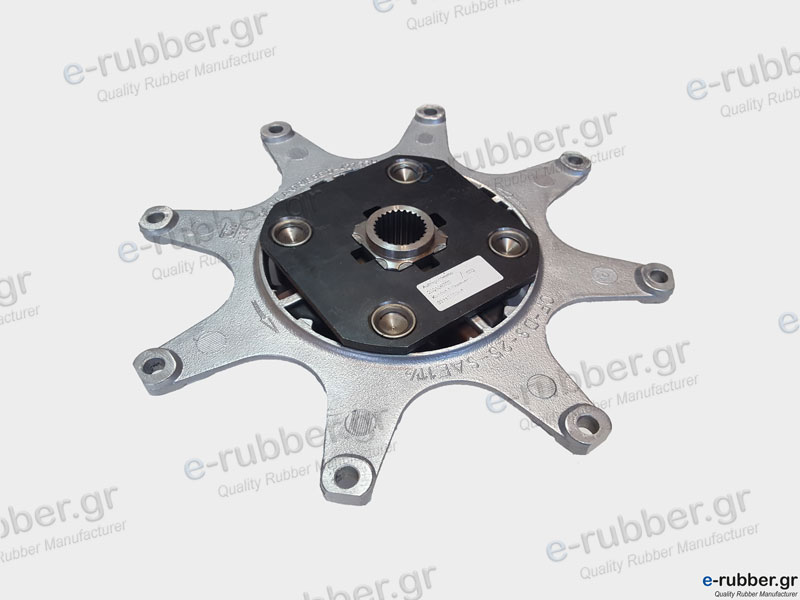

Centa marine damper plate (drive plate, Centaflex dual stage coupling) for marine diesel 4 cylinder engines with SAE 11.5 flywheel and 26-spline transmission.

CENTA: 021-65501-000 | 021 65501 000 | 21-60450-00 | 21 60450 00 | A-4-21-0450 | CI-000036
ZF: 3311316004
Twin Disc: IT4648019

Used on:
ZF and Hurth transmissions: 45C (HSW 450D), 63C (HSW 630D), 25 (HSW 250H), 25A (HSW 250A), 45-1 (HSW 450H2), 45A (HSW 450A2), 45IV, 63 (HSW 630H1), 63A (HSW 630A1), 63IV (HSW 630V1)

This Centa marine damper plate, also known as a drive plate or Centaflex dual-stage coupling is specifically developed for marine use. Its dual-stage elastic design effectively absorbs torsional vibrations and shock loads, protecting gearboxes and drivetrains while enhancing operational comfort and efficiency.
