Transfluid RBD 7S for QD-SH Hub

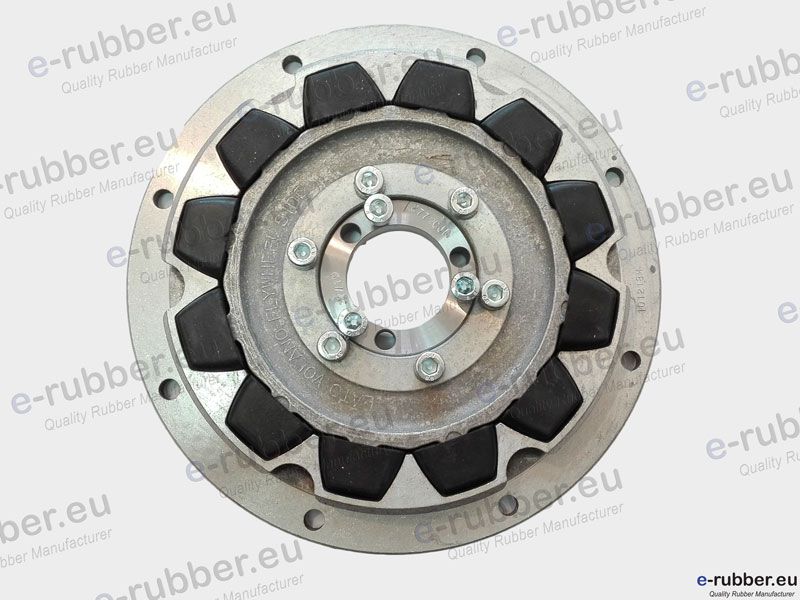

Transfluid RBD 7S rigid mechanical coupling with rubber elements for QD-SH Hub

P/N: AKB2772CJA | 2772CJA

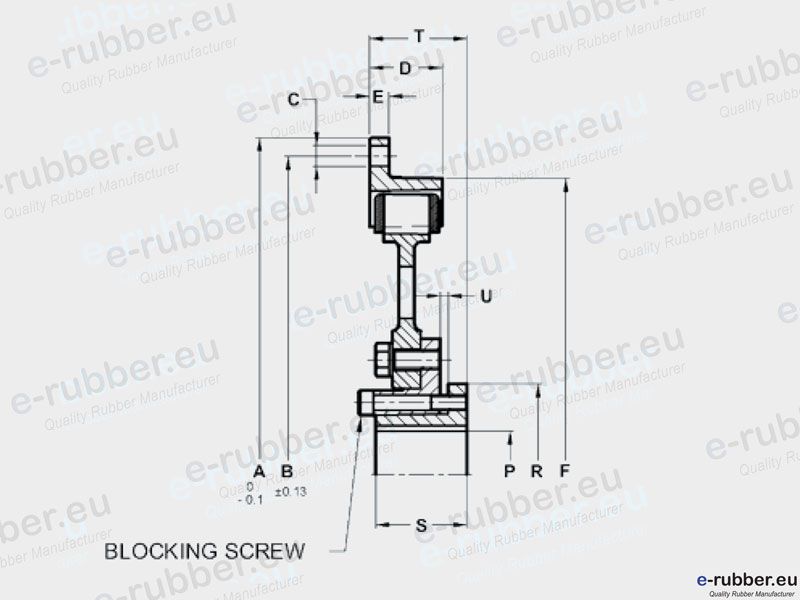

Dimensions
A: 241.3
B: 222.2
C: 9
D: 34
E: 9
F: 202
R: 68.3
S: 31.75
T: 46.5
U: 3

If you also need the center hub, let us know the required dimension and teeth for your required hub.
